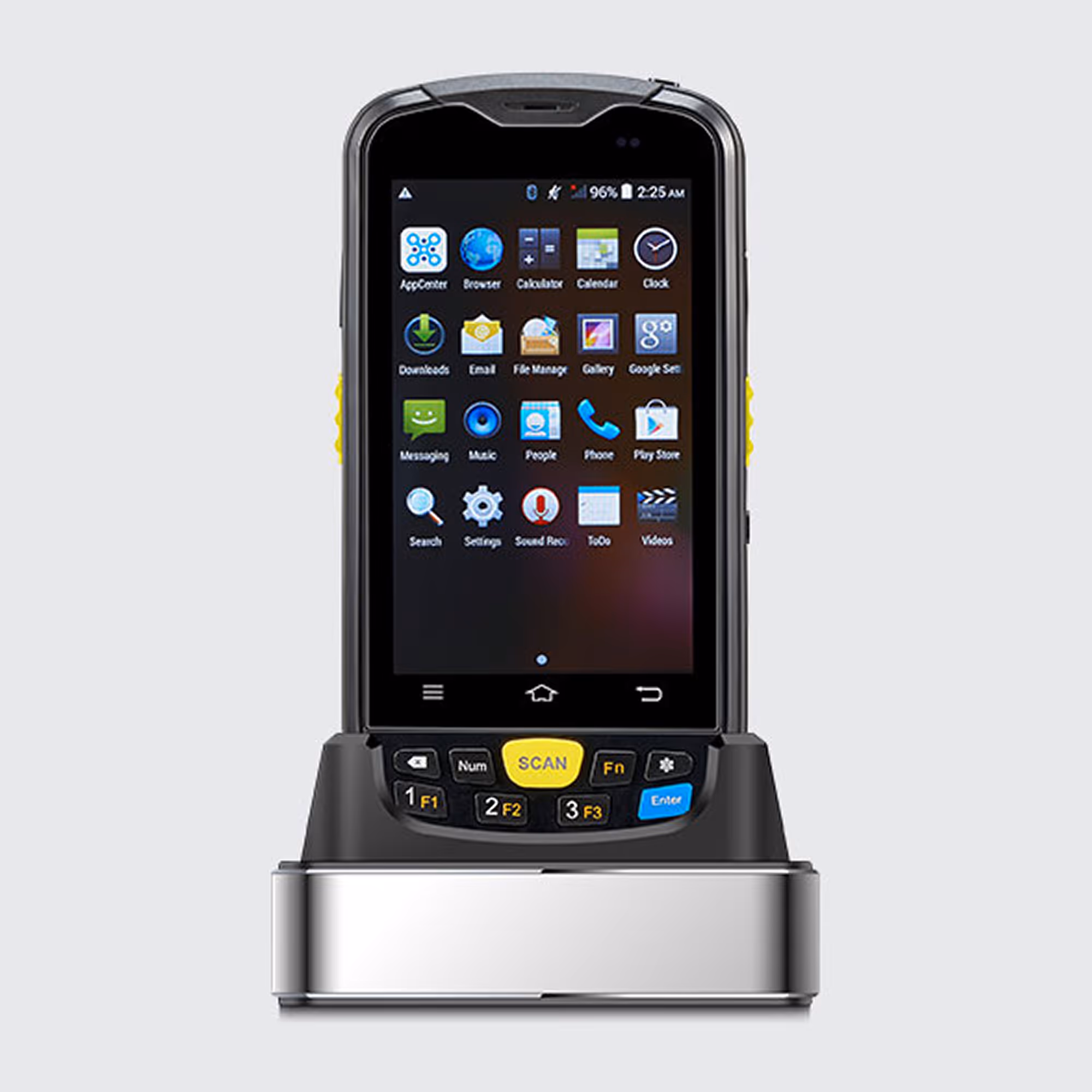

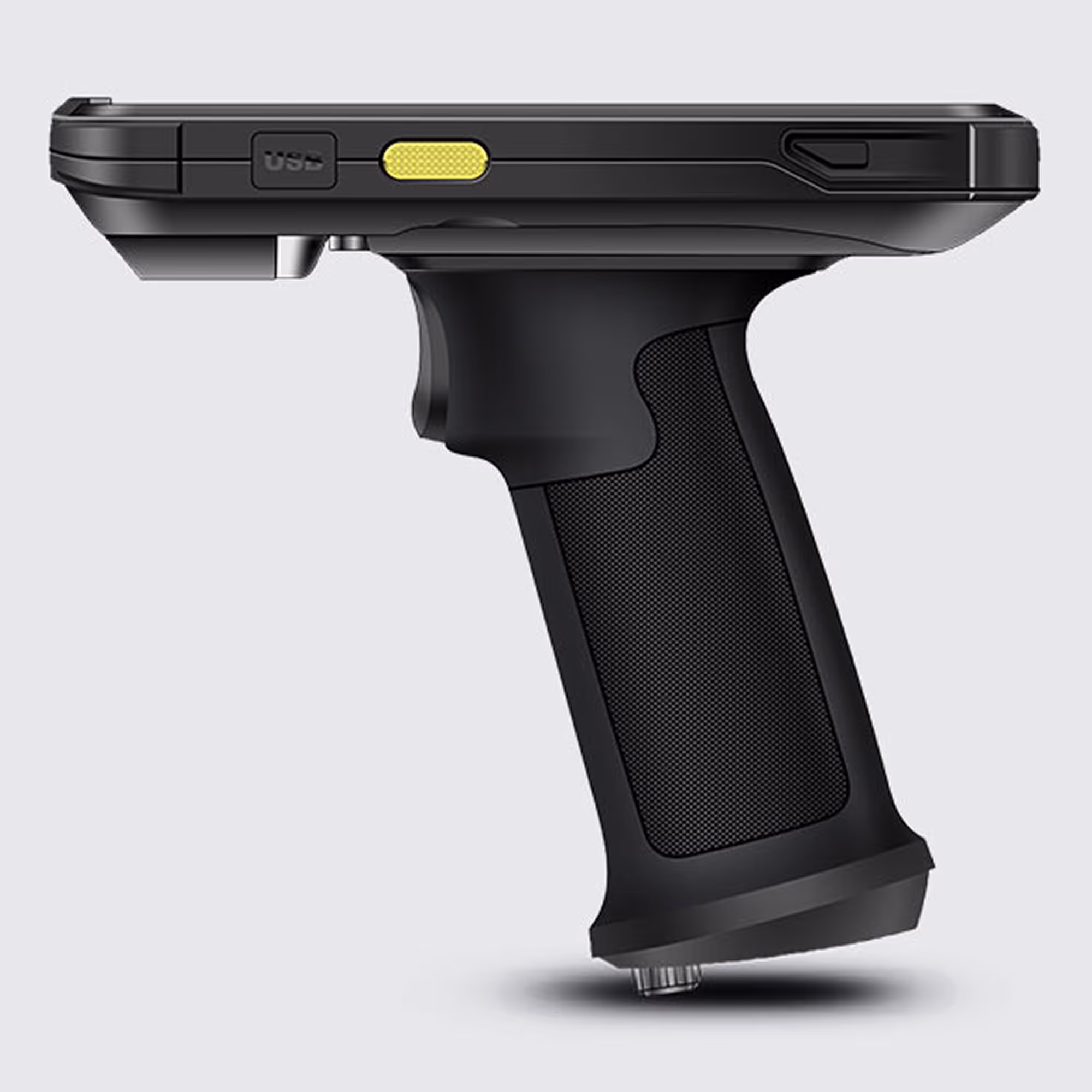

C6000 Rugged Handheld Computer

Physical

• Dimensions: 157.6 x 73.7 x 29 mm / 6.2 x 2.9 x 1.1 in.
• Weight: 292 g / 10.3 oz.
• Display: 4” TN α-Si 480*800, 16.7 M colors
• Battery: Main battery: Li-ion, rechargeable, 4200 mAhStandby: over 300 hoursContinuous use: over 12 hours (depending on user environment)Charging time: 3-4 hours (with standard adaptor and USB cable)
• Touch Panel: Rugged dual touch capacitive touch panel
• Vibrator: Sound, LED indicator, vibrator
• Card Slot: 1 slot for Micro SIM card, 1 slot for MircoSD(TF) or PSAM card (optional)
• Keypad: 3 TP soft keys, 3 side keys, numeric keyboard
• Sensors: Light sensor, proximity sensor, gravity sensor
• Audio: 1 microphone；1 speaker；receiver

Platform

• Operating System: Android 10.0; GMS, Soti MobiControl; FOTA, SafeUEM supported. Built-in support for a future upgrade through Android 11 / 12 which complies with GMS
• Sdk: Chainway Software Development Kit
• Language: Java
• Tool: Eclipse / Android Studio
• Cpu: Cortex-A53 2.0 Octa-core
• Ram+Rom: 3 GB + 32 GB 2 GB + 16 GB (optional)
• Expansion: Supports up to 128 GB Micro SD card

Wireless

• Wlan: Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA;Fast roaming: PMKID caching, 802.11r, OKC;Operating Channels: 2.4G(channel 1~13), 5G(channel 36,38,40,42,44,46,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,149,153,157,161,165, depends on local regulationsSecurity and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI-PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc.
• Wwan: 2G: GSM850/GSM900/DCS1800/PCS19003G: CDMA EVDO: BC0WCDMA: B1/B2/B4/B5/B8TD-SCDMA: A/F(B34/B39)4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/ B28B/B34/B38/B39/B40/B41
• Bluetooth: V2.1+EDR,3.0+HS and V4.1+HS, BT5.0
• Gnss: GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

Camera

• Rear Camera: Rear 13MP Autofocus with flash

Scanning

• 2D Scanner: Zebra SE4710; Honeywell N6603
• 1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of5, Codabar, MSI, RSS, etc
• 2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc

Environmental

• Operating Temp: -4℉ to 122 ℉ / -20 ℃to 50 ℃
• Storage Temp: -40℉ to 158℉ / -40 ℃ to 70 ℃
• Humidity: 5% RH – 95% RH non condensing
• Drop Specification: Multiple 2.0 m / 6.56 ft. drops to concrete across the operating temperature range
• Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature
• Sealing: IP65 per IEC sealing specifications
• Esd: ±15 KV air discharge, ±8 KV conductive discharge
