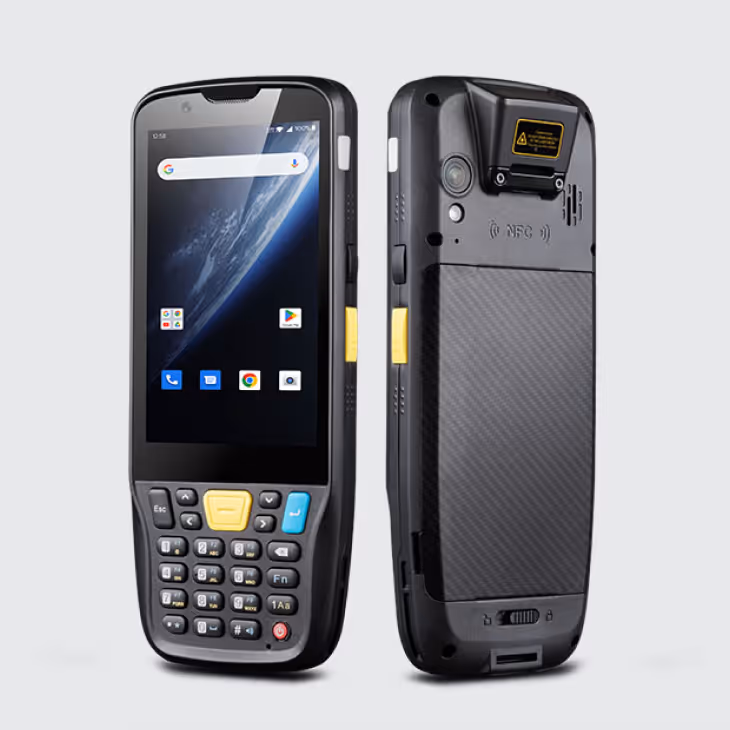

MC62 Mobile Computer (Android 13)

Ergonomic Keypad and Scan Angle for Enhanced Work Performance.

Chainway MC62 is a lightweight and portable high-performance mobile computer. With Android 13, octa-core processor, 4-inch touchscreen and 5000mAh removable battery, the excellent configuration delivers highly efficient operation. It supports barcode scanning, NFC, 13MP camera, multiple wireless connections, and features IP67 protection rating, 1.5 meters drop resistance. The mobile computer is thus widely applicable in various fields including warehousing, logistics, retail, finance, transportation, and manufacturing, helping users significantly improve work efficiency.

GET QUOTE

Features

Android 13

High-Performance Octa-Core 2.0GHz

Only 256g

Optimized Button Layout

One-Hand Operation

5000mAh Removable Battery

IP67 & 1.5m / 5ft. Drop

Optional Handle

Functions

Powerful Barcode Scanning

Front and Rear Cameras, NFC, and More

SPECIFICATIONS

Physical Characteristics

Dimensions: 163.5 x 67.0 x 17.1mm/6.44 x 2.64 x 0.67in
Weight: 256g / 9.03oz (device with battery)
Display: 4-inch, 480 x 800
Touch Panel: Multi-touch panel, gloves and wet hands supported
Power: 5000mAh removable battery, support quick charge
Notification: Sound, LED indicator, vibrator
Expansion Slot: 1 slot for SIM card, 1 slot for SIM or TF card
Interfaces: USB Type-C, USB 2.0, OTG
Audio: 2 microphones, 1 for noise reduction, back; 1 speaker; receiver
Keypad: Main keypad , 2 scan keys, multi-function keys
Sensors: Gravity sensor, distance sensor, light sensor; Gyroscope (optional), geomagnetic sensor (optional)

Performance

CPU: Octa-core, 2.0GHz
RAM+ROM: 4GB + 64GB
Expansion: Supports up to 256GB Micro SD (TF) card

Communication

WLAN: 802.11d/e/h/i/j/k/r/v/w with companion D-die, Dualband( 2.4GHz and 5GHz) single stream 802.11 a/b/g/n/ac RF, 20/40/80MHz bandwidth, 5G PA
WWAN: 2G: GSM (B2 / B3 / B5 / B8) 3G: WCDMA (B1 / B2 / B4 / B5 / B8) TD-SCDMA (B34 / B39) 4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 / B20 / B28A / B28B) TDD-LTE (B34 / B38 / B39 / B40 / B41)
Bluetooth: Bluetooth 5.0
Vo-LTE: Support
GNSS: GPS/AGPS, GLONASS, BeiDou, Galileo

Barcode Scanning

2D Scanner: Zebra: SE4710; CM60
1D Symbologies: UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.
2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc.
Note: *This function is optional

Camera

Front Camera: 5MP
Rear Camera: 13MP Autofocus with flash

NFC

Frequency: 13.56 MHz
Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips: M1 card (S50, S70), CPU card, NFC tags, etc.
Range: 2-4 cm

User Environment

Operating Temp.: -4 °F to 122 °F / -20 °C to 50 °C
Storage Temp.: -40 °F to 158 °F / -40 °C to 70 °C
Humidity: 5% RH - 95% RH non condensing
Drop Specification: Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing: IP67 per IEC sealing specifications
ESD: ±15 KV air discharge, ±8 KV conductive discharge
