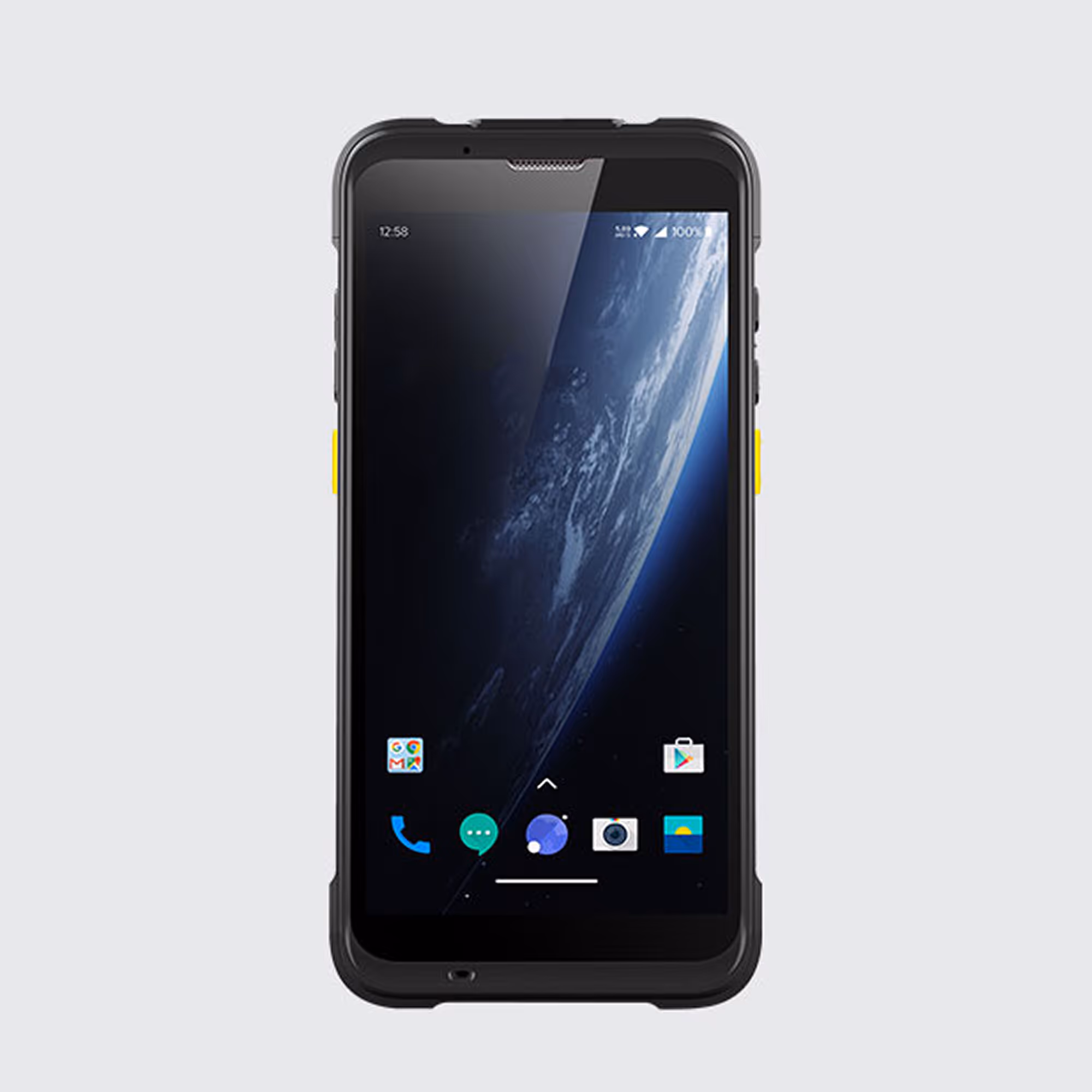

C66 Fingerprint Scanner

Physical

• Dimensions: 160.0 x 76.0 x 17.0 mm / 6.3 x 2.99 x 0.67 in.
• Weight: 297 g / 10.47 oz. (device with battery)
• Display: 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720
• Battery: Removable main battery 5200mAh, support QC3.0 and RTCStandby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h)Continuous use: over 12 hours (depending on user environment)Charging time: 2.5 hours (charge device by standard adaptor and USB cable)
• Touch Panel: Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
• Vibrator: Sound, LED indicator, vibrator
• Interfaces: USB Type-C, USB 3.1, OTG, extended thimble
• Card Slot: 1 slot for Mirco SIM card, 1 slot for TF card
• Keypad: 1 power key, 2 scan keys, 2 volume keys
• Sensors: Accelerometer sensor, light sensor, proximity sensor, gravity sensor
• Audio: 2 microphones，1 for noise cancellation；1 speaker；receiver
• Sensor: TCS1

Platform

• Operating System: Android 11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
• Sdk: Chainway Software Development Kit
• Language: Java
• Tool: Eclipse / Android Studio
• Cpu: Qualcomm Snapdragon™ 662 Octa-core, 2.0 GHz
• Ram+Rom: 3 GB + 32 GB / 4 GB + 64 GB
• Expansion: Supports up to 128 GB Micro SD card

Wireless

• Wlan: Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6, 5G PAFast roaming: PMKID caching, 802.11r, OKCOperating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulationsSecurity and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc
• Wwan: 2G: 850/900/1800/1900 MHz3G: CDMA EVDO: BC0WCDMA: 850/900/1900/2100MHzTD-SCDMA: A/F(B34/B39)4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41WWAN (America) 2G: 850/900/1800/1900 MHz3G: 850/900/1900/2100 MHz4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
• Bluetooth: Bluetooth 5.1
• Vo-Lte: Support Vo-LTE HD video voice call
• Gnss: GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

Camera

• Rear Camera: 13 MP autofocus rear camera with flash

Scanning

• 2D Scanner: Zebra: SE4710/SE2100; Honeywell: N6603; E3200; IA166S
• 1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
• 2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
• Format Extraction: ISO 19794, WSQ, ANSI 378, JPEG2000
• Security: AES, DES key encryption of the host communication channel

RFID

• Frequency: 13.56 MHz
• Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
• Chips: M1 card (S50, S70), CPU card, NFC tags, etc.
• Range: 2-4 cm

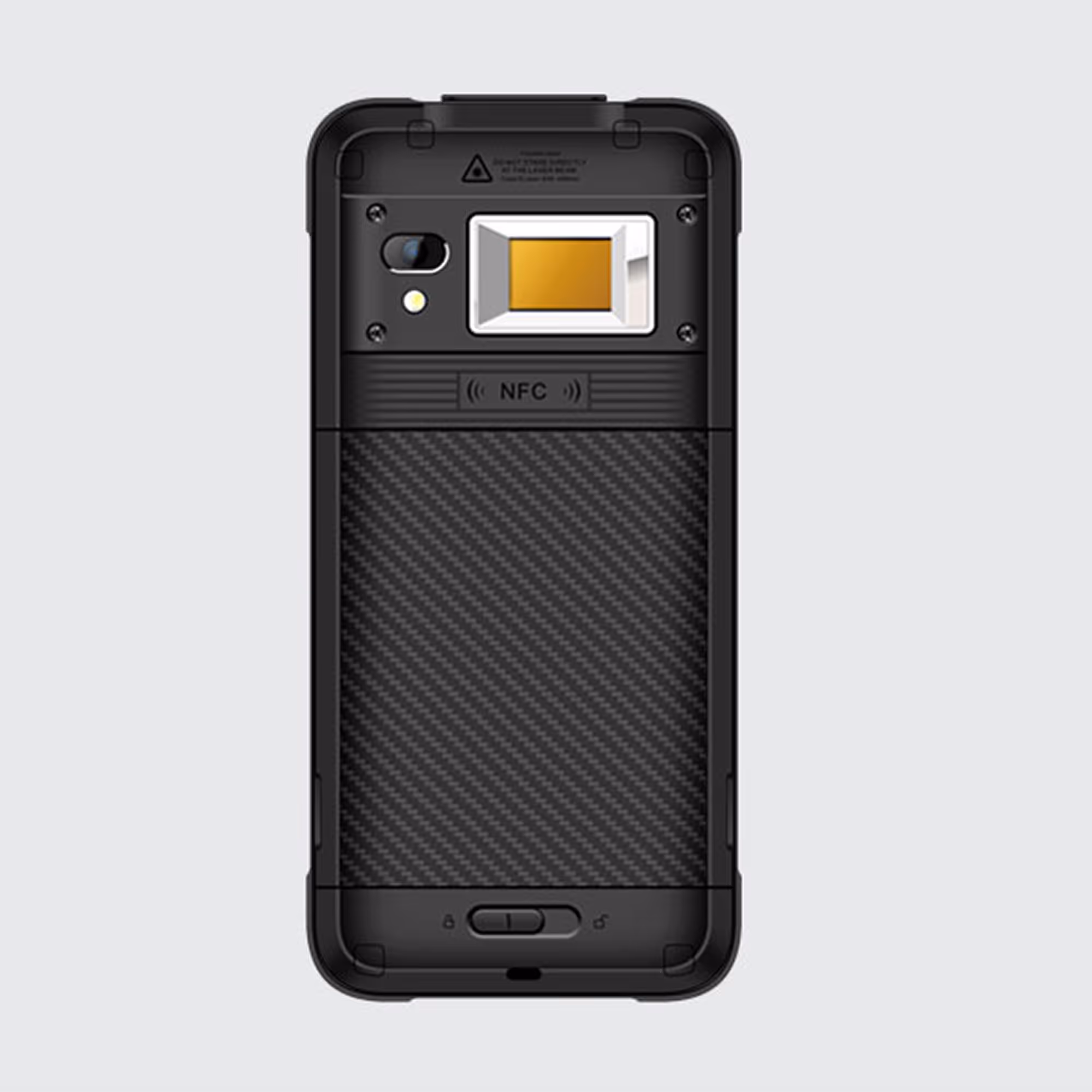

Biometrics

• Sensing Area (Mm): 12.8 × 18.0 ; 10.4 x 14.4
• Resolution (Dpi): 508 dpi, 8-bit greylevel
• Fake Finger Detection: Support by SDK

Environmental

• Operating Temp: 4oF to 122oF / -20 ℃ to +50 ℃
• Storage Temp: -40℉ to 158℉ / -40 ℃ to 70 ℃
• Humidity: 5% RH – 95% RH non condensing
• Drop Specification: Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber bumper
• Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature
• Sealing: IP65 per IEC sealing specifications
• Esd: ±15 KV air discharge, ±8 KV conductive discharge

Certifications

• Certifications: FIPS 201, STQC

Accessories

• Accessories: Wrist Strap; Rubber Bumper; Charging Cradle
