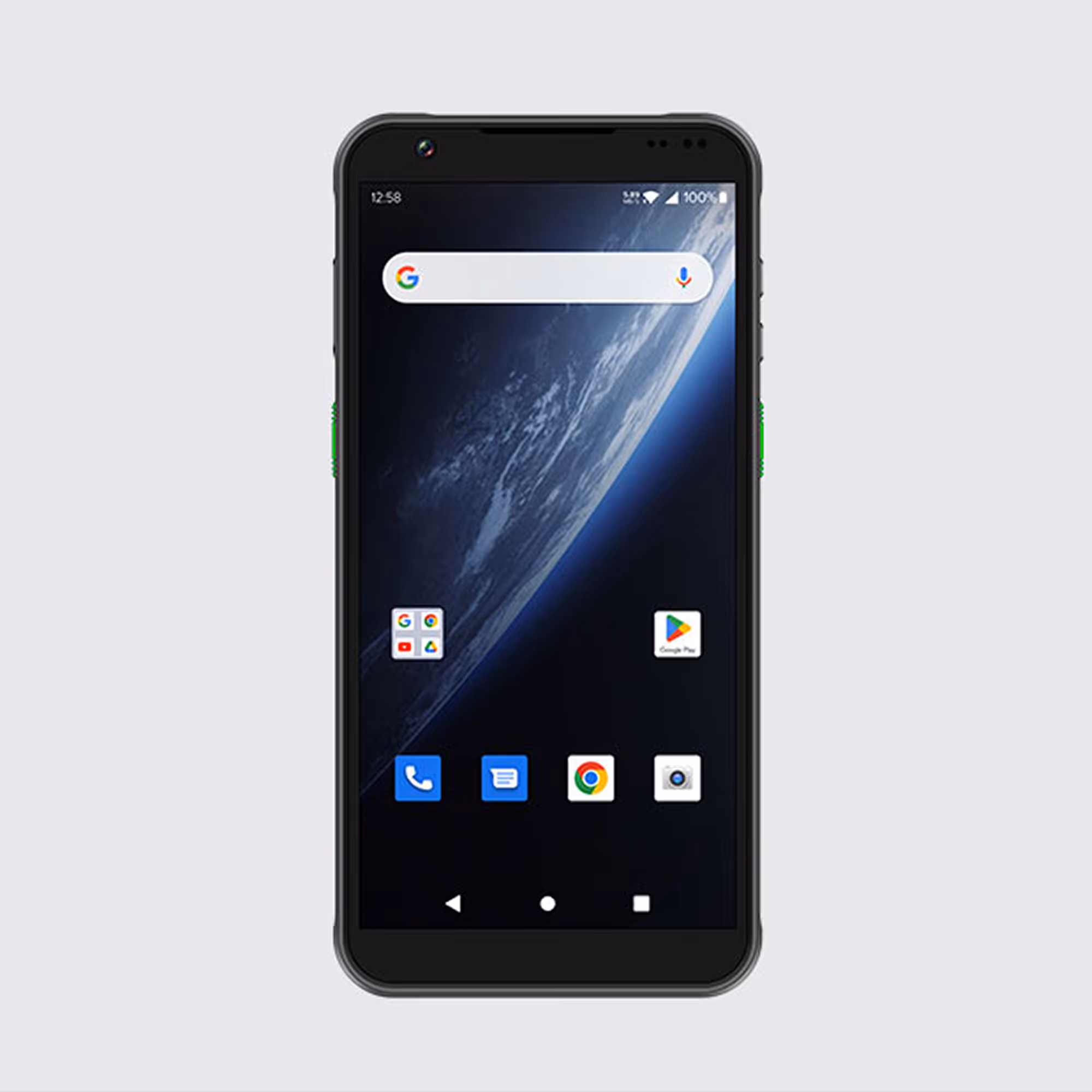

MC50 Mobile Computer

Physical

• Dimensions: 161.0 x 77.8 x 15.5mm / 6.34 x 3.06 x 0.61in.
• Weight: 269g / 9.49oz. (device with battery)
• Display: 6-inch high definition display (18:9), 1440 x 720
• Touch Panel: Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
• Interfaces: USB Type-C, USB 3.1, OTG
• Card Slot: 1 for SIM card, 1 for SIM or TF card
• Keypad: Power key, 2 scan keys, volume (+/-) keys
• Sensors: G_sensor, proximity sensor, light sensor, geomagnetic sensor, gyroscope
• Audio: 2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver
• Physical Charc Power: 5000mAh removable main battery, support QC3.0 and RTC

Platform

• Operating System: Android 12
• Sdk: Chainway Software Development Kit
• Language: Java
• Tool: Eclipse / Android Studio
• Cpu: Qualcomm Snapdragon™ 480 Octa-core, 2.0GHz
• Ram+Rom: 4GB + 64GB
• Expansion: Supports up to 256GB TF card

Wireless

• Wlan: Support 802.11 a/b/g/n/ac/ax-ready, 2.4G/5G dual-band, IPV4, IPV6, 5G PA;Fast roaming: PMKID caching, 802.11r, OKC;Operating Channels:2.4G (channel 1~13),5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulationsSecurity and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc.
• Wwan: 2G: 850/900/1800/1900MHz3G: 850/900/1900/2100MHz4G: B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/ B415G: N1/N3/N8/N28/N41/N78/N79
• Bluetooth: Bluetooth 5.1
• Vo-Lte: Support Vo-LTE HD video voice call
• Gnss: GPS / AGPS, GLONASS, BeiDou, Galileo, internal antenna

Camera

• Front Camera: 5MP
• Rear Camera: 16MP Autofocus with flash

Scanning

• 2D Scanner: Zebra: SE4710; CM60
• 1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
• 2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

RFID

• Frequency: 13.56MHz
• Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
• Chips: M1 card (S50, S70), CPU card, NFC tags, etc.
• Range: 2-4cm

Environmental

• Operating Temp: -4°F to 122°F / -20°C to +50°C
• Storage Temp: -40°F to 158°F / -40°C to +70°C
• Humidity: 5%RH – 95%RH non condensing
• Drop Specification: Multiple 1.5m / 4.92ft. drops (at least 28 times) to the concrete across the operating temperature range
• Tumble Specification: 1000 x 0.5m / 1.64ft. falls at room temperature
• Sealing: IP67 per IEC sealing specifications
• Esd: ±15KV air discharge, ±8KV conductive discharge

Accessories

• Note: * This function is optional

Other

• Notification: Sound, LED indicator, vibrator
