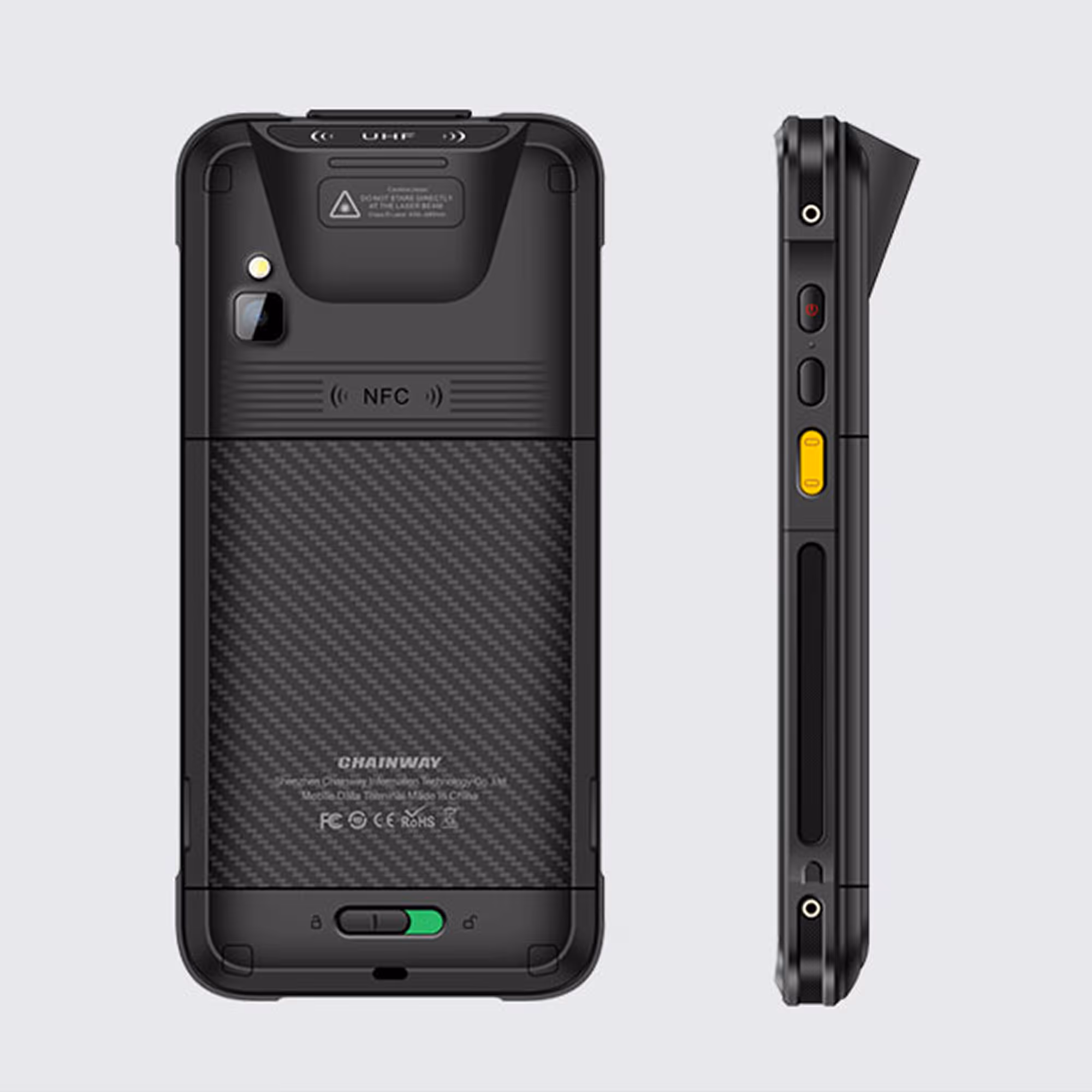

C66 UHF RFID Reader

Physical

• Dimensions: 160.0 x 76.0 x 15.5 mm / 6.3 x 2.99 x 0.61 in.
• Weight: 657 g / 23.17 oz. (with battery, UHF 1, UHF back clip); 798 g / 28.15 oz. (with battery, UHF 2, C66+R6); 297 g / 10.47 oz. (with battery, UHF 3, Built-in UHF)
• Display: 5.5-inch high definition full display (18:9) , IPS IGZO 1440 x 720
• Battery: Removable main battery (normal version:4420 mAh ; Android 11 with fingerprint / built-in UHF / volume measurement version: 5200mAh )5200 mAh optional pistol battery, support QC3.0 and RTCStandby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h)Continuous use: over 12 hours (depending on user environment)Charging time: 2.5 hours (charge device by standard adaptor and USB cable)
• Touch Panel: Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
• Vibrator: Sound, LED indicator, vibrator
• Interfaces: Android 9: USB Type-C, USB 3.0, OTG, extended thimble; Android 11: USB Type-C, USB 3.1, OTG, extended thimble;
• Card Slot: 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
• Keypad: 1 power key, 2 scan keys, 2 volume keys
• Sensors: Accelerometer sensor, light sensor, proximity sensor, gravity sensor
• Audio: 2 microphones，1 for noise cancellation；1 speaker；receiver

Platform

• Operating System: Android 9; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Android 11; GMS, 90-day security updates, Android Enterprise, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
• Sdk: Chainway Software Development Kit
• Language: Java
• Tool: Eclipse / Android Studio
• Cpu: Android 9: Qualcomm Snapdragon™ 450 Octa-core, 1.8 GHz Android 11: Qualcomm Snapdragon™ 662 Octa-core, 2.0 GHz
• Ram+Rom: 3 GB + 32 GB 4 GB + 64 GB (optional)
• Expansion: Supports up to 128 GB Micro SD card

Wireless

• Wlan: Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4, IPV6, 5G PA;Fast roaming: PMKID caching, 802.11r, OKC;Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations;Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc.
• Wwan: WWAN (Europe, Asia)2G: 850/900/1800/1900 MHz3G: CDMA EVDO: BC0WCDMA: 850/900/1900/2100MHzTD-SCDMA: A/F(B34/B39)4G: B1, B3, B5, B7, B8, B20, B38, B39, B40, B41WWAN (America)2G: 850/900/1800/1900 MHz3G: 850/900/1900/2100 MHz4G: Android 9: B2/B4/B5/B7/B12/B17/B38Android 11: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
• Bluetooth: Android 9: Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR Android 11: Bluetooth 5.1
• Vo-Lte: Support Vo-LTE HD video voice call
• Gnss: GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

Camera

• Rear Camera: Rear 13MP Autofocus with flash

Scanning

• 2D Scanner: Zebra: SE4710 / SE2100; Honeywell: N6603; E3200; IA166S
• 1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
• 2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
• R/W Range: Up to 15 m (open outdoors, Impinj MR6 tag)
• R/W Range: Up to 10 m (open outdoors, Impinj MR6 tag)
• R/W Range: 1.5 m

RFID

• Engine: CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj Indy R2000
• Frequency: 865-868 MHz / 920-925 MHz / 902-928 MHz
• Protocol: EPC C1 GEN2 / ISO18000-6C
• Antenna: Circular Polarized Antenna (4dBi)
• Power: 1W (30dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33dBm, for Latin America, etc.)
• Fastest Read Rate: 900+ tags/sec
• Engine: CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj Indy R2000
• Frequency: 865-868 MHz / 920-925 MHz / 902-928 MHz
• Protocol: EPC C1 GEN2 / ISO18000-6C
• Antenna: Circular Polarized Antenna (3 dBi)
• Power: 1W (30 dBm, support +5~+30 dBm adjustable) 2W Optional (33 dBm, for Latin America, etc.)
• Fastest Read Rate: 900+ tags/sec
• Engine: CM-5N module based on Impinj E510
• Frequency: 865-868 MHz / 920-925 MHz / 902-928 MHz
• Protocol: EPC C1 GEN2 / ISO18000-6C
• Antenna: Circular polarization (-2.5 dBi)
• Power: 1 W (+19 dBm to +30 dBm adjustable)
• Frequency: 13.56 MHz
• Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
• Chips: M1 card (S50, S70), CPU card, NFC tags, etc.
• Range: 2-4 cm

Environmental

• Operating Temp: -20 ℃~+50 ℃
• Storage Temp: -40 ℃~+70 ℃
• Humidity: 5% RH – 95% RH non condensing
• Drop Specification: Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range; Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot
• Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature
• Sealing: IP65 per IEC sealing specifications
• Esd: ±15 KV air discharge, ±8 KV conductive discharge

Accessories

• Note: * UHF back clip * Ranges and rates depend on tags and environment * This function is optional
• Note: * C66 + R6 UHF Sled * Ranges and rates depend on tags and environment * This function is optional
• Note: * Build-in UHF * Android 11 optional; built-in UHF version does not support pistol
• Accessories: Separate handle with one button； Handle + battery (handle battery 5200mAh, one button) ; UHF back clip + handle (5200mAh, one button) ; Wrist Strap; Rubber Bumper; Charging Cradle
• Note: *See details in Accessory Guide

Other

• Communication Mode: Pin Connector
• Communication Mode: Pin Connector / Bluetooth
