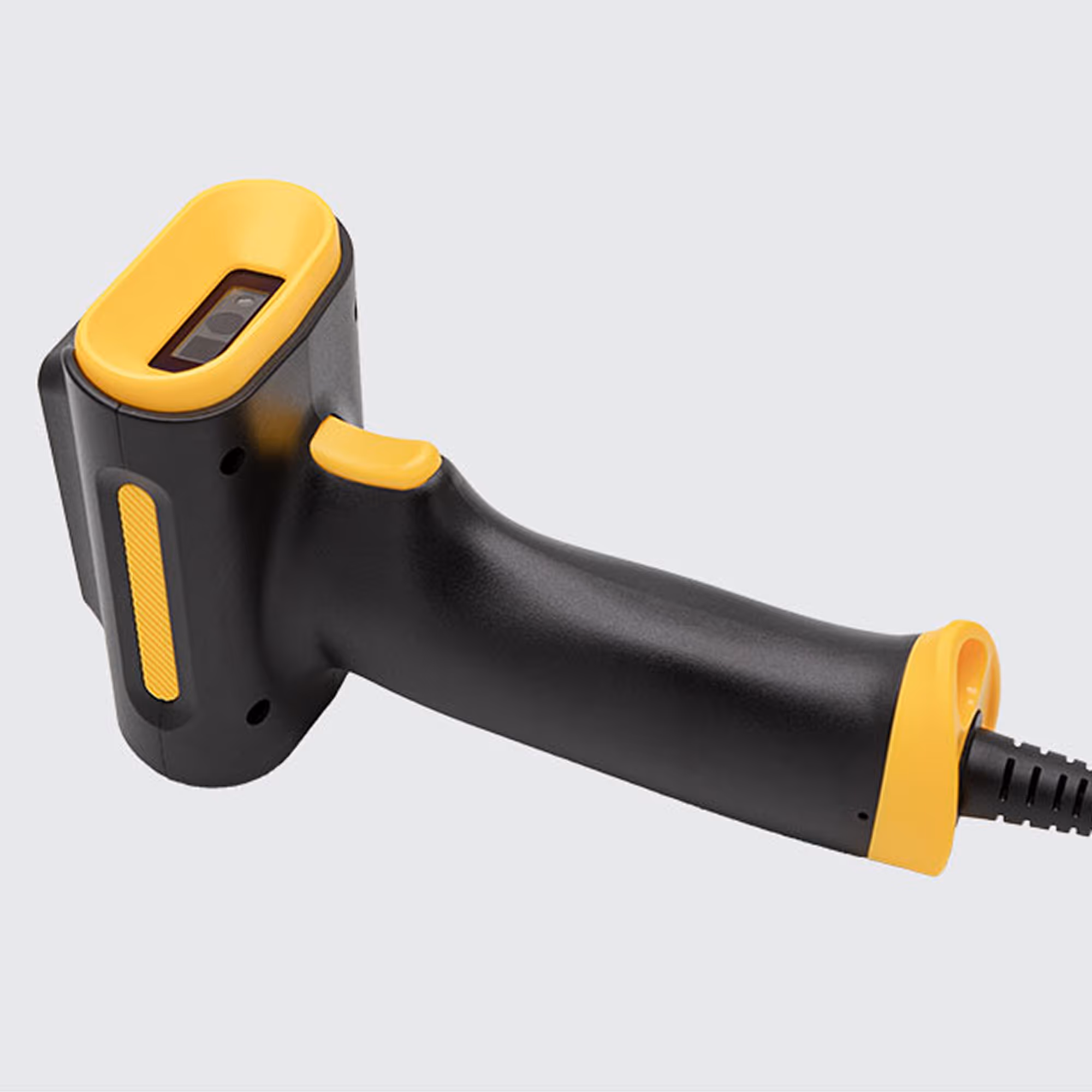

SR160 UHF RFID Scanner
Powerful UHF and 1D/2D Performance
Multiple Comm Methods： USB / RS-232 / Bluetooth
Features
Support Windows / Linux / MacOS
Multiple Comm Methods： USB / RS-232 / Bluetooth
Three Modes: Single Barcode Scanning Single UHF RFID Scanning Hybrid Scanning
Functions
Barcode Scanning (Optional)
UHF RFID
SPECIFICATIONS
Physical
- Dimensions: 154.0 x 87.8 x 65.0mm / 6.46 x 3.43 x 2.56in.
- Battery: 2600mAh (Wireless Version)
- Keypad: Power key / scan key
- Material: Plastic
Wireless
- Comm Interface: RJ45 interface，HID USB
- Bluetooth: Bluetooth Low Energy (BLE) 5.0 (Wireless Version)
RFID
- Indicator Led: Function: 1 for UHF, 1 for 2D Status: 1 for UHF, 1 for 2D Power: 1 Bluetooth: 1
- Engine: CM-3N module based on Impinj E310
- Frequency: 920-925MHz / 902-928MHz / 865-868MHz
- Protocol: EPCglobal C1G2 (ISO18000-6C)
- Antenna: Circular Polarized Antenna
- Output Power: 1-25dBm
- Output Power Flatness: ±1dBm
Environmental
- Drop Specification: 1.5m
Accessories
- Accessories: USB Cable:2m, TYPE-A, RJ45 Power Supply: 5V 2A
Other
- Buzzer: Voice prompt
- Button: UHF、2D、UHF or 2D
- Scan Engine: 2D Scanner
- Minresolution: Code 39 – 4mil、UPC – 7.8mil (60%)、 PDF417 – 5mil、Datamatrix – 5mil
- Output Power Precision: ±1dBm
- Max Read Range: >30cm (Tag: Alien H3)
