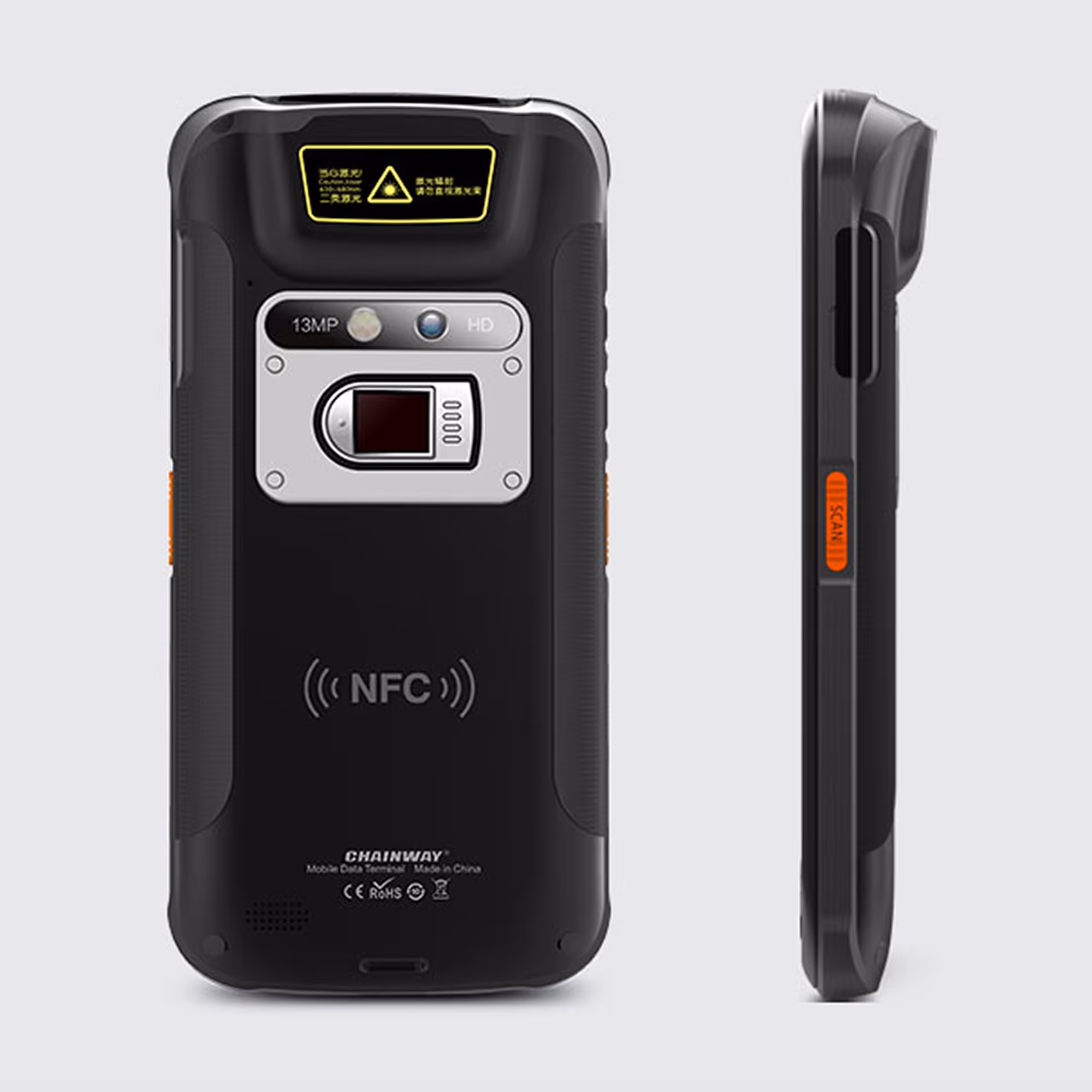

C71 Built-in RFID Reader

Physical

• Dimensions: 164.2 x 78.8 x 17.5mm / 6.46 x 3.10 x 0.69 in.
• Weight: ＜321 g / 11.32 oz.
• Display: 5.2” IPS LTPS 1920 x 1080
• Battery: Main battery: Li-ion, rechargeable, 5000 mAhStandby: over 350 hoursContinuous use: over 12 hours (depending on user environment)Charging time: 3-4 hours (with standard adaptor and USB cable)
• Touch Panel: Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
• Vibrator: Sound, LED indicator, vibrator
• Interfaces: USB 2.0 Type-C, OTG, Type-C headphones supported
• Card Slot: 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
• Keypad: 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
• Sensors: Light sensor, proximity sensor, gravity sensor
• Audio: 2 microphones，1 for noise cancellation；1 speaker；receiver

Platform

• Operating System: Android 8.1; GMS, FOTA, Soti MobiControl, SafeUEM supported. Android 11.0; GMS, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
• Sdk: Chainway Software Development Kit
• Language: Java
• Tool: Eclipse / Android Studio
• Cpu: Cortex-A53 2.5 / 2.3 GHz Octa-core
• Ram+Rom: 3 GB + 32 GB / 4 GB + 64 GB
• Expansion: Supports up to 128 GB Micro SD card

Wireless

• Wlan: IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
• Wwan: Android 8.1:WWAN (China):2G: 900/1800MHz3G: WCDMA: B1,B8CDMA2000 EVDO: BC0TD-SCDMA: B34,B394G: B1,B3,B5,B8,B34,B38,B39,B40,B41WWAN (Europe):2G: 850/900/1800/1900 MHz3G: B1/B2/B4/B5/B84G: B1/B3/B5/B7/B8/B20/B40WWAN(America):2G: 850/900/1800/1900 MHz3G: B1/B2/B4/B5/B84G: B2/B4/B7/B12/B17/B25/B66Android 11.0:2G: GSM850/GSM900/DCS1800/PCS19003G: WCDMA：B1/B2/B4/B5/B8CDMA2000 EVDO: BC0TD-SCDMA：A/F4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28AB28B/B34/B38/B39/B40/B41
• Bluetooth: Android 8.1: Bluetooth v2.1+EDR,3.0+HS,v4.1+HS Android 11.0: Bluetooth 5.0
• Gnss: GPS/AGPS, GLONASS, BeiDou; internal antenna

Camera

• Front Camera: 5 MP *This function is optional
• Rear Camera: Rear 13MP Autofocus with flash

Scanning

• 2D Scanner: Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603
• 1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
• 2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

RFID

• Frequency: 13.56 MHz
• Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
• Chips: M1 card (S50, S70), CPU card, NFC tags, etc.
• Range: 2-4 cm
• Engine: CM-Q module; CM-3N module based on Impinj E310
• Frequency: 865-868 MHz / 920-925 MHz / 902-928 MHz
• Protocol: EPC C1 GEN2 / ISO18000-6C
• Antenna: Circular Polarized Antenna (4 dBi)
• Power: 1W (+19 dBm to +30 dBm adjustable)
• Rw Ranges: Up to 4m (depend on tags and environment)

Environmental

• Operating Temp: 4oF to 122oF / -20 ℃ to +50 ℃
• Storage Temp: -40℉ to 158℉ / -40 ℃ to 70 ℃
• Humidity: 5% RH – 95% RH non condensing
• Drop Specification: Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
• Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature
• Sealing: IP65 per IEC sealing specifications
• Esd: ±15 KV air discharge, ±8 KV conductive discharge

Accessories

• Note: *Ranges and rates depend on tags and environment
• Accessories: Wrist Strap; Rubber Bumper; Charging Cradle
• Note: *See details in Accessory Guide
