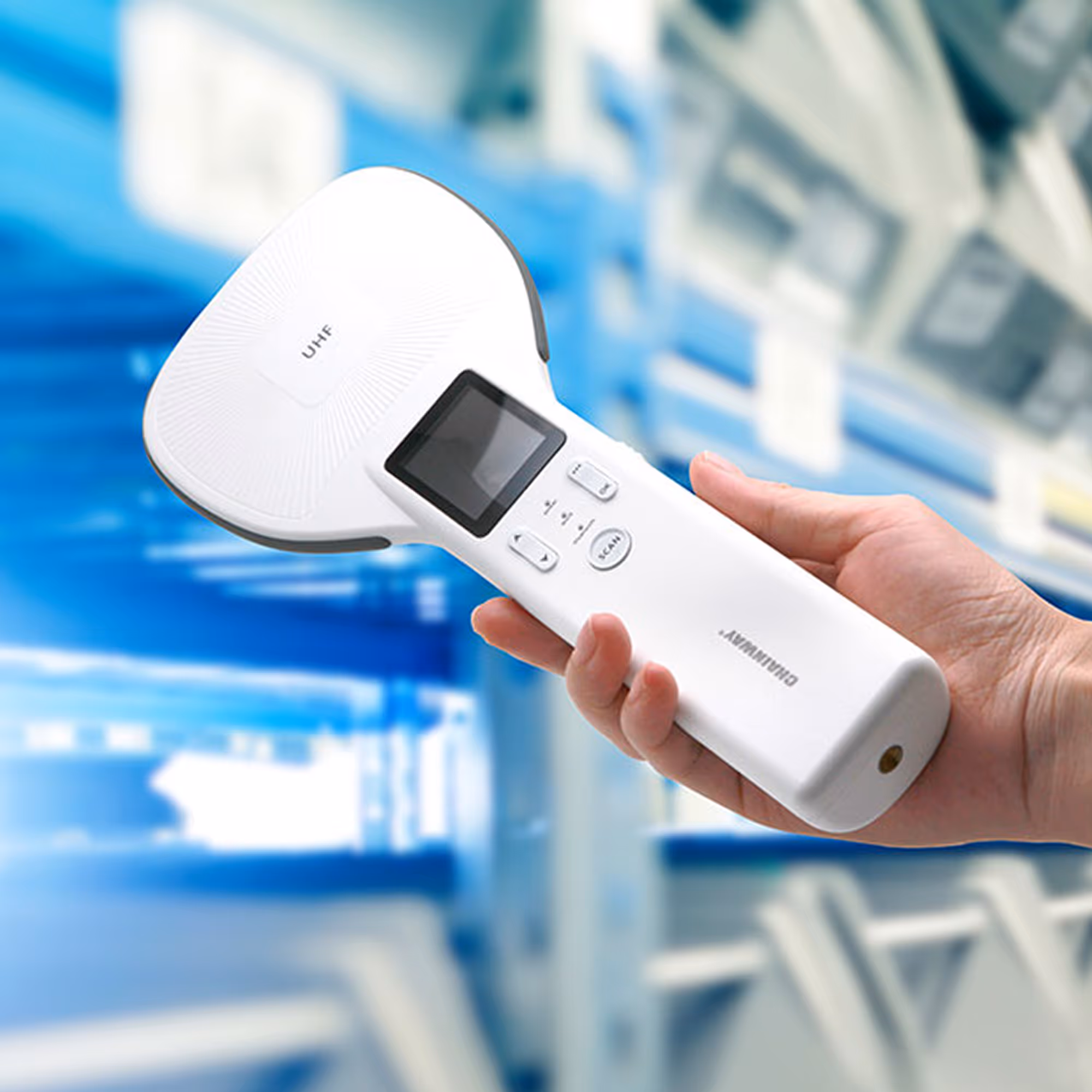

R2 Bluetooth RFID Reader

Physical

• Dimensions: 282 x 117.5 x 32 mm / 11.10 x 4.63 x 1.26 in.
• Weight: 334 g / 11.78 oz. (with battery)
• Display: 1.77 inch, 128 x 160
• Battery: Battery specification: 5200 mAhStandby: over 70 hours (keeping bluetooth connected)Continuous use: up to 6 hours (UHF reading)Charging time: 3-4 hours (with standard adaptor and USB cable)
• Interfaces: Micro-USB
• Keypad: Buzzer: SupportProduct Material: PlasticColour: WhiteBluetooth: Bluetooth 4.0, BLE

Platform

• Sdk: Android / IOS
• Language: Java / Objective-C
• Tool: Android Studio / Xcode
• Cpu: Cortex-M3 72MHz
• Ram+Rom: 50000 tags

Scanning

• 2D Scanner: SE2707
• 1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
• 2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

RFID

• Indicator Led: Power, Work, Bluetooth
• Engine: CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj Indy R2000
• Frequency: 920-925 MHz / 902-928 MHz / 865-868 MHz
• Antenna: Linear Polarized antenna (4dBi)
• Rw Ranges: > 15 m(open outdoors, Impinj MR6 tag)
• Fastest Read Rate: 900+ tags/sec

Environmental

• Operating Temp: -20 ℃~+50 ℃
• Storage Temp: -40 ℃~+70 ℃
• Humidity: 5% RH – 95% RH non condensing
• Drop Specification: Multiple 1.5m / 4.9ft. drops (at least 20 times) to the concrete across the operating temperature range
• Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature
• Esd: ±15 KV air discharge, ±8 KV conductive discharge

Accessories

• Note: *Ranges and rates depend on tags and environment
