R6 UHF RFID Sled Reader

Physical

• Dimensions: 143 x 76 x 140 mm / 5.63 x 2.99 x 5.51 in.

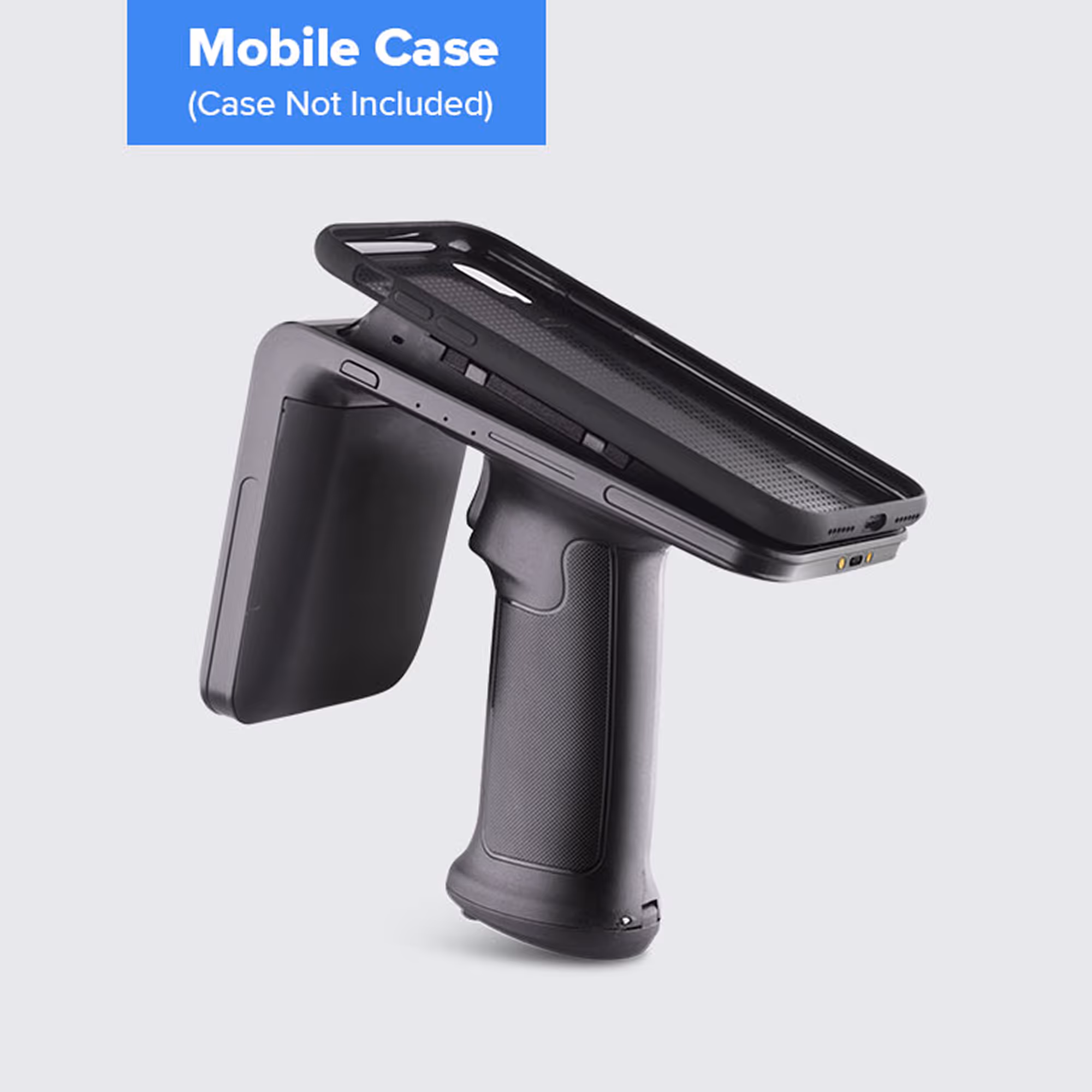

• Weight: Sled Reader: 483g / 17.04oz. Sled Reader with Mobile Case: 453g / 15.98oz. Sled Reader with Customized Holder: 500g / 17.64oz.
• Battery: Battery specification:5200 mAhStandby: over 70 hours (keeping bluetooth connected)Continuous use: up to 6 hours (UHF reading)Charging time: 3-4 hours (with standard adaptor and USB cable)
• Interfaces: USB 3.0 Type-C
• Sensors: Buzzer: SupportSize of adapted phone: Sled Reader: Width 68~80 mm, thickness ≤ 22 mmOthers: Based on phone case or holderProduct Material: PlasticColour: BlackBluetooth: Bluetooth 4.0, BLE

Platform

• Cpu: Cortex-M3 72MHz
• Ram+Rom: 20000 tags and 400 barcodes (optional)

Scanning

• 2D Scanner: SE2707
• 1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc.
• 2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

RFID

• Indicator Led: Power, Work, Bluetooth
• Engine: CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj Indy R2000
• Frequency: 920-925 MHz / 902-928 MHz / 865-868 MHz
• Antenna: Circular Polarized Antenna (3dBic)
• Power: 1W (30dBm, support +5~+30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.)
• Rw Ranges: Up to 13m(open outdoors, Impinj MR6 tag)
• Fastest Read Rate: 900+ tags/sec

Environmental

• Operating Temp: -20 ℃~+50 ℃
• Storage Temp: -40 ℃~+70 ℃
• Humidity: 5% RH – 95% RH non condensing
• Drop Specification: Multiple 1.5 m / 4.9 ft. drops to concrete across the operating temperature range
• Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature
• Sealing: IP65 per IEC sealing specifications
• Esd: ±15 KV air discharge, ±8 KV conductive discharge

Accessories

• Note: Ranges and rates depend on tags and environment
